Magnetic Component Assembly
磁性组件

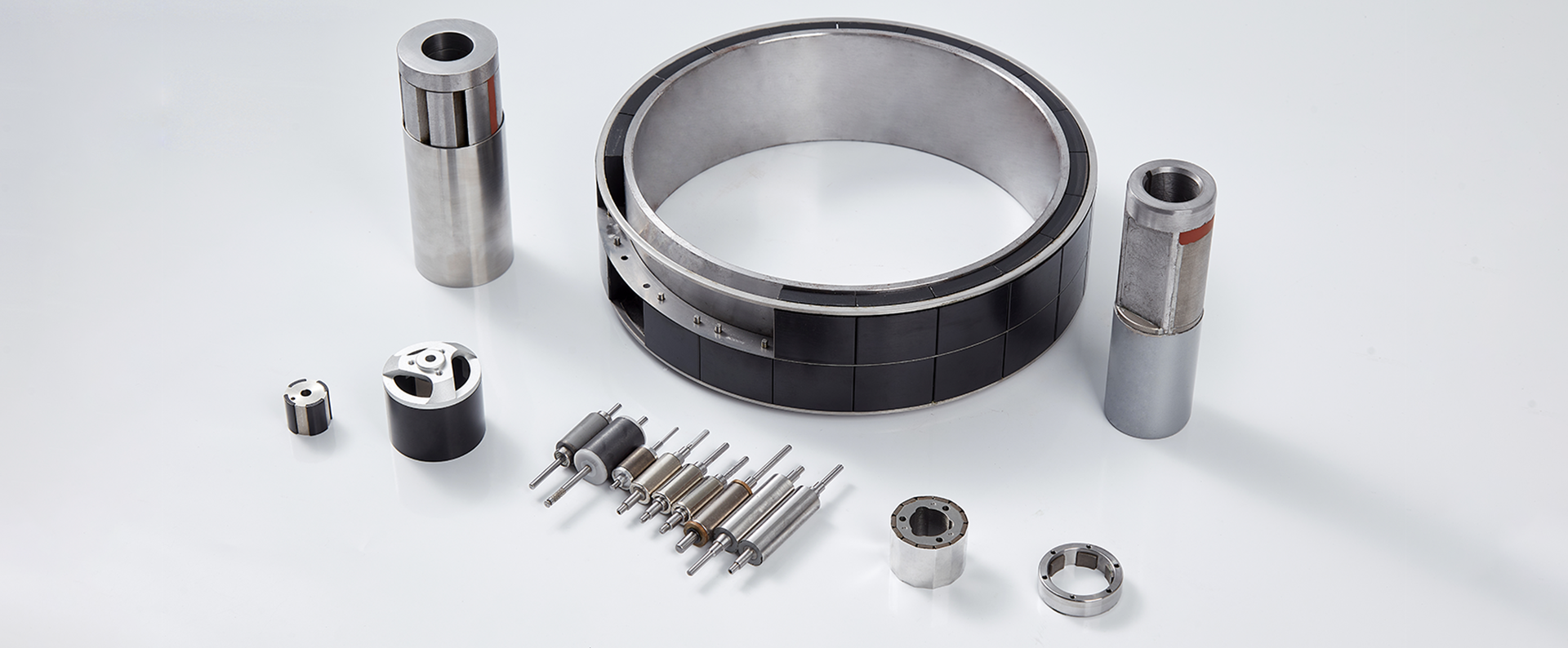

Magnetic component assemblies combine permanent magnets with soft-iron pole pieces, housings, and hardware into ready-to-install sub-assemblies. By arranging magnetic and flux-conducting elements together, the assembly raises magnetic flux density and total flux — strengthening the magnetic field while saving magnet material compared with a standalone magnet.
AIC Engineering manages the full build — from magnet selection (NdFeB, ferrite, SmCo, AlNiCo) and FEA magnetic-circuit design to precision machining, assembly, post-assembly magnetisation, 100% flux testing, and packaging. The result is a single drop-in part that reduces your supply-chain complexity and incoming inspection load.
Typical assemblies include motor rotor sub-assemblies (multi-pole rings, radial rings, Halbach arrays), sensor modules (Hall-sensor magnet + pole piece + housing), holding-magnet assemblies (pot magnets, channel magnets), and custom OEM magnetic actuators. Each assembly is built to order against your field-strength, envelope, and mounting specification.
Key Features
Integrated Sub-Assembly
Magnets, pole pieces, housing, and hardware delivered as one drop-in part — ready to install, no sub-assembly on your line.
Multi-Material Magnets
NdFeB, ferrite, SmCo, and AlNiCo selectable per assembly — matched to field strength, temperature, and cost target.
Post-Assembly Magnetisation
Magnetise after assembly so the completed sub-assembly meets the specified field pattern and strength — no handling of charged parts during build.
100% Flux Tested
Every assembly is flux-measured and inspected before shipment; ISO 9001 and IATF 16949 certified build process.
Assembly Types
Built to order — send your field-strength target, envelope, and mounting requirement. Representative assembly types below.
| Assembly Type | Description | Typical Use |
|---|---|---|
| Motor Rotor Sub-Assembly | Multi-pole ring or radial ring magnet on rotor core; post-assembly magnetisation. | BLDC / servo motors, traction rotors. |
| Halbach Array Assembly | Bonded or sintered segments arranged in Halbach orientation for one-sided field. | Linear motors, magnetic levitation, high-field actuators. |
| Sensor Module | Hall-sensor magnet with pole piece and housing; calibrated field at sensing gap. | Position & speed sensors, BLDC commutation. |
| Holding Magnet Assembly | Pot magnet or channel magnet with steel cup concentrating flux to holding face. | Workholding, fixtures, magnetic locks. |
| Magnetic Coupling Assembly | Inner and outer magnet rings with isolation shell for torque transfer. | Sealed pumps, mixers, sterile fluid handling. |
| Custom OEM Assembly | Customer-defined magnetic circuit, housing, and interface — built to print. | Actuators, custom devices, proprietary mechanisms. |
Configurable Parameters
No fixed catalogue grades — each assembly is designed to your field-strength and envelope specification. Typical ranges below.
| Parameter | Typical Range | Notes |
|---|---|---|
| Magnet Material | NdFeB / Ferrite / SmCo / AlNiCo | Selected per field, temperature, and cost target. |
| Assembly Method | Adhesive / Press-fit / Overmoulded | Adhesive standard; press-fit or overmould for high-volume. |
| Housing Material | Steel / Aluminium / Plastic | Steel for flux concentration; Al / plastic for weight or isolation. |
| Magnetisation | Pre- or post-assembly | Post-assembly for final field pattern in the assembled part. |
| Operating Temp. | −40 to 200 °C | Material-dependent; SmCo for elevated temperature. |
| Quality | 100% flux tested | ISO 9001 & IATF 16949 certified build process. |
| MOQ | 50 pcs standard | Lower MOQ available for prototyping on request. |
| Lead Time | 2 – 6 weeks | Depends on design complexity and material availability. |
Values are typical design ranges — confirmed field strength, dimensions, and lead time are provided per quotation after magnetic-circuit review.
Design & Manufacturing
FEA magnetic-circuit design first, then machining and sourcing, assembly and magnetisation, and 100% flux verification.
- Field-strength & envelope specification
- FEA magnetic-circuit simulation
- Magnet grade & pole-piece selection
- Housing & assembly method defined
- CNC machining of housing & pole pieces
- Magnet sourcing (NdFeB / SmCo / Ferrite / AlNiCo)
- Surface treatment & corrosion protection
- Incoming inspection of components
- Adhesive / press-fit / overmould assembly
- Post-assembly magnetisation to spec
- 100% flux measurement & field mapping
- Dimension inspection & protective packaging
Typical Applications
Need a Custom Magnetic Component Assembly?
Send your field-strength target, operating temperature, envelope, and mounting interface — our engineers will design the magnetic circuit, select materials, and propose a ready-to-install assembly.
Discuss Custom RequirementsFrequently Asked Questions
Answers to common questions about our magnets, customisation, ordering and shipping.
- What is a magnetic component assembly? +
- A magnetic component assembly integrates permanent magnets, soft-iron pole pieces, housings, and hardware into a ready-to-install sub-assembly — AIC manages the full build from magnet selection and magnetisation to assembly, inspection, and packaging.
- What types of magnetic assemblies do you build? +
- Motor rotor sub-assemblies, sensor modules, actuator units, holding fixtures, Halbach arrays, and custom OEM assemblies — built to print with 100% flux testing and ISO 9001 quality.
- Do you offer rapid prototyping for magnetic assemblies? +
- Yes. Rapid prototyping is available in 3–7 days, followed by DFM and volume-production handoff, reducing your supply-chain complexity.
