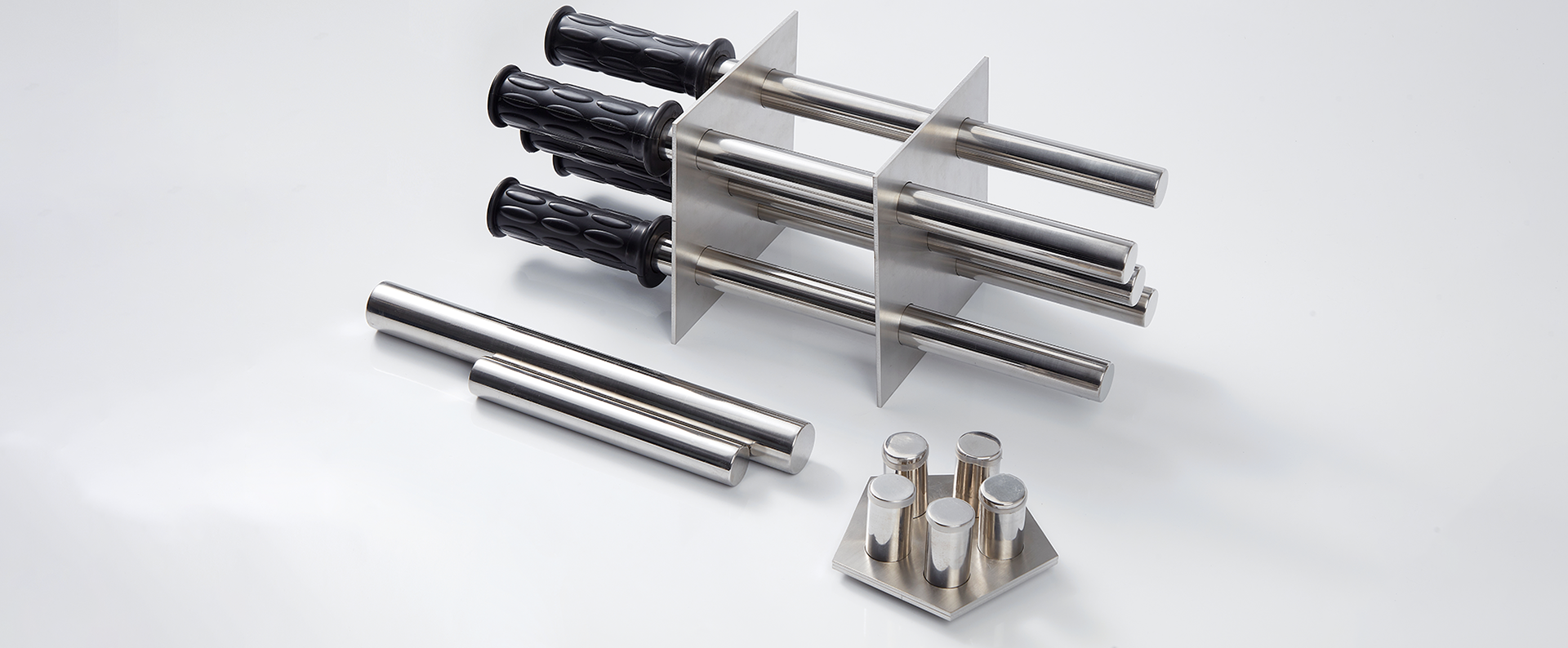

Magnetic Filtration System
磁过滤系统
A magnetic filtration system captures and removes ferromagnetic and para-magnetic particles from fluids using high-intensity rare-earth magnets — effectively solving the problem of conventional filters being unable to capture sub-micron metal fines. Fluid is guided through a strong magnetic field region where ferrous particles are adsorbed onto the magnetic element, purifying the fluid.
AIC Engineering builds magnetic filters for metalworking coolant, hydraulic oil, grinding fluid, EDM dielectric, and gear oil service. High-gradient magnetic elements achieve filtration levels unattainable by conventional media filters, protecting downstream equipment from abrasive wear and extending fluid life.
Systems are configured by flow rate, particle size target, fluid type, and pressure rating — from compact in-line units for single machines to high-flow skid systems for central coolant plants. Manual-clean and self-cleaning automatic models are available, with stainless-steel construction throughout the wetted path.
Key Features
Sub-Micron Capture
High-gradient rare-earth elements capture ferrous fines that pass straight through conventional media filters.
Up to 12,000 Gauss
High-intensity rare-earth magnetic elements deliver field strength for fine / weakly magnetic particle capture.
Manual & Auto Clean
Manual-clean units for single machines; self-cleaning automatic models for central plants and continuous flow.
Stainless Wetted Path
304 / 316 stainless-steel construction throughout the fluid path — corrosion-resistant for coolants and oils.
System Types
Built to order — send flow rate, fluid type, particle target, and pressure rating. Representative system types below.
| System Type | Description | Typical Use |
|---|---|---|
| In-Line Manual Clean | Compact in-line unit with removable magnetic rod; cleaned by withdrawing and wiping. | Single-machine coolant, hydraulic oil, low-flow lines. |
| High-Flow Skid System | Skid-mounted multi-rod array sized for central coolant plant flow. | Central coolant systems, large flow rates. |
| Self-Cleaning Automatic | Automatic magnetic-element extraction and discharge; continuous flow. | Continuous-process lines, unattended operation. |
| High-Gradient Element | Magnetic element with matrix media to create high-gradient capture zones. | Fine / weakly magnetic particle capture. |
| High-Pressure Unit | Rated for hydraulic-system pressure with suitable vessel and seals. | Hydraulic power units, high-pressure lines. |
| Custom System | Customer-defined flow, connection, and mounting — built to spec. | OEM machine integration, special fluids. |
Configurable Parameters
Each system is sized to your flow and fluid specification. Typical ranges below.
| Parameter | Typical Range | Notes |
|---|---|---|
| Flow Rate | 10 – 2000 L/min | Model-dependent; skid systems scale higher. |
| Particle Capture | Sub-micron ferrous | High-gradient elements for finest particles. |
| Magnet Strength | Up to 12,000 Gauss | Rare-earth high-intensity elements. |
| Housing Material | 304 / 316 Stainless Steel | 316 for aggressive coolants and corrosion resistance. |
| Connection | BSP / NPT / Flanged | Matched to existing piping. |
| Max Pressure | 10 bar (standard) | Higher-pressure vessels on request. |
| Cleaning | Manual / Self-cleaning auto | Auto for continuous/unattended service. |
| Temperature | up to 120 °C | Seal and magnet grade dependent. |
Values are typical design ranges — confirmed flow, capture performance, and dimensions are provided per quotation.
Design & Manufacturing
Flow and capture spec first, then vessel machining, magnetic-element build, pressure test, and capture verification.
- Flow rate, fluid & particle target spec
- Magnetic-element sizing and field design
- Vessel pressure and connection rating
- Cleaning-mode selection (manual / auto)
- Stainless-steel vessel machining and welding
- Rare-earth magnetic-element build
- Seal and gland assembly
- Connection and mounting fitting install
- Vessel pressure test to rated pressure
- Magnetic-field strength verification
- Flow and capture-performance check
- Protective packaging
Typical Applications
Need a Custom Magnetic Filtration System?
Send your flow rate, fluid type, particle target, and pressure rating — our engineers will size the magnetic element and propose a filtration system.
Discuss Custom RequirementsFrequently Asked Questions
Answers to common questions about our magnets, customisation, ordering and shipping.
- How does a magnetic filtration system work? +
- Fluid is guided through a high-intensity rare-earth magnetic field region where ferrous and para-magnetic particles are adsorbed onto the magnetic element, capturing sub-micron fines that pass through conventional media filters.
- What flow rate and capture performance can it handle? +
- Flow rates from 10 to 2000 L/min (model-dependent), sub-micron ferrous particle capture, magnetic strength up to 12,000 Gauss, with 304/316 stainless-steel wetted path and 10 bar pressure rating.
- Are self-cleaning automatic models available? +
- Yes. Manual-clean units suit single machines; self-cleaning automatic models extract and discharge the magnetic element for continuous, unattended operation in central coolant plants.
